The Aquafire Direct Plumb Kit connects an Aquafire AWA Series water vapor fireplace directly to a 1/4" water line so the tank refills itself automatically — no manual filling, no interruption to the flame. Every AWA Series insert you install needs its own kit, and the first kit on an order ships with a Vapor Pure water softener to protect the mist maker from hard-water scale.
- Continuous automatic refill — the fireplace draws from your water supply and stops on its own when the tank is full.
- Simple 1/4" OD connection — plumbs in like a refrigerator ice maker, with a tap switch for service.
- Vapor Pure softener included on the first kit — hard water is the single biggest cause of shortened mist-maker life.
- One kit per fireplace — order an additional kit for each extra insert in a ganged run.
- Installs in minutes — four M4 screws and a Phillips screwdriver, following the assembly guide.
| Compatibility | Aquafire AWA Series (AWA, AWA2, AWA3) — 20", 40" and 60" |
| Not compatible with | Aquafire Pro (direct plumb is built in), Aquafire Lite, Aquafire Gatsby |
| Water line | 1/4" OD |
| Additional clearance required | 2" of extra enclosure height above the standard cutout |
| Tools needed | Phillips head screwdriver |
| Fasteners supplied | (6) M4 x 5mm screws |
| Warranty | 2-year limited |
What's Included

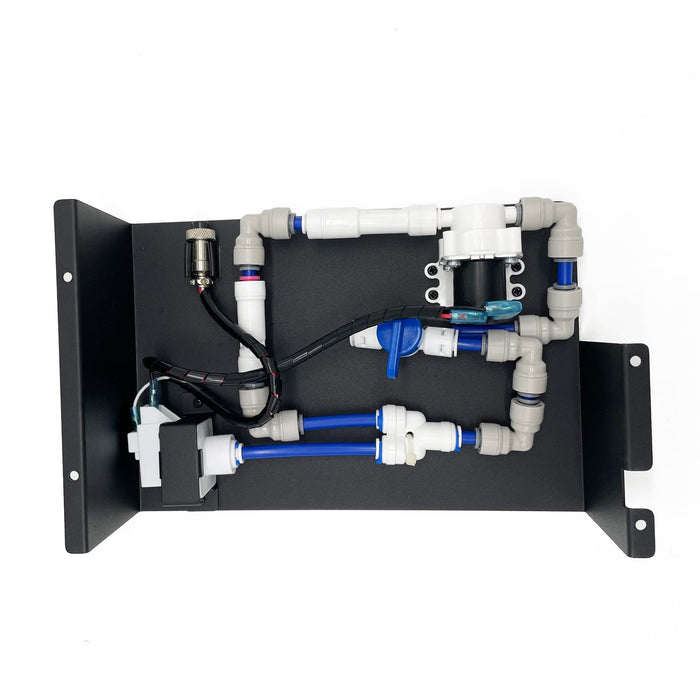

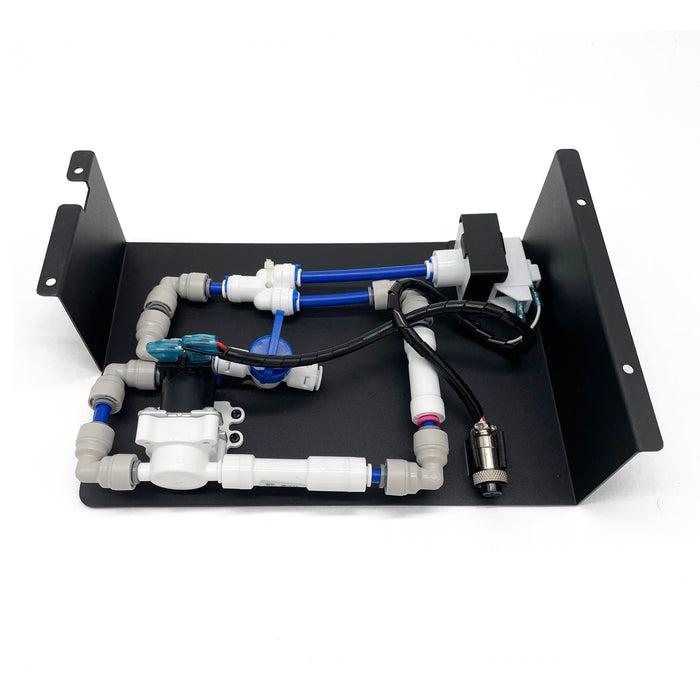

- Direct Plumb Kit assembly with water tap switch and 1/4" OD tube
- (6) M4 x 5mm mounting screws

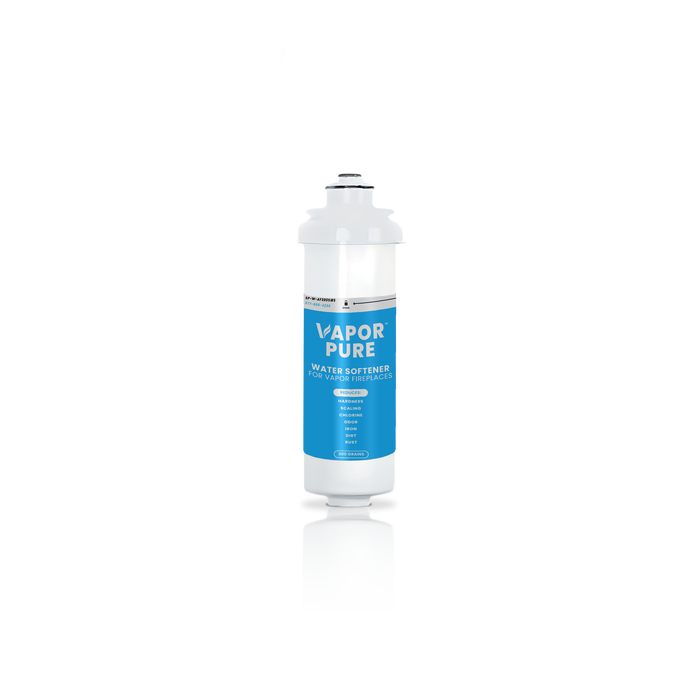

- Vapor Pure water softener (first kit per order only — SKU 098-AWA-DP-VP)
- Assembly instructions
Installation Manual | Spec Sheet | Owner's Manual
Warranty: Aquafire covers this kit under a 2-year limited warranty against manufacturing defects. Improper installation of the Direct Plumb Kit can cause leaks, incomplete filling, or damage to the fireplace and will void the warranty — follow the assembly guide exactly.
